◎ The new water turbine and gearbox are efficient and energy-saving, and the optimized mechanical structure improves the performance of the

    whole machine by 20%.

◎ Optional intelligent automatic control function, so that irrigation uniformity is higher.

◎ The average service life of the whole machine is more than 15 years, and the life of the PE pipe is more than 10 years.

◎ Sprinkler by 65, 75, 85, 90 four types of a complete series, flow 25-85m3/h, irrigation PE pipe diameter 65-110mm, laying length 200-450

    meters, single control area of 200-400 acres.

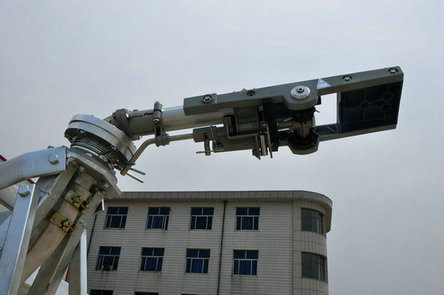

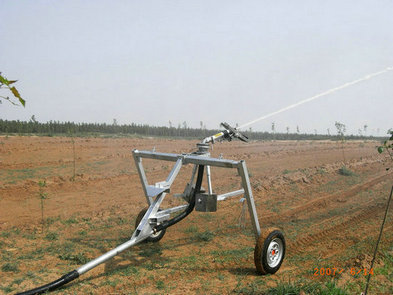

Airbrush type

Equipped with Twin SR101/140 gun manufactured by KOMET company.

The spraying distance is long, the injection Angle and the sprinkler size are wide, and the automatic and smooth rotating injection can be achieved

without manual intervention.

The spraying distance can reach 35 ~ 50 meters.

High irrigation uniformity, suitable for all kinds of high and low pole crops irrigation.

Cantilever type

Low pressure irrigation for delicate crops without damaging the soil and crops, with a control bandwidth of up to 34 meters.

The cantilever type truss is made of high-quality structural steel pipe welded, and each section is connected by quick joints, which is easy and

simple to install and disassemble.

The length of the truss is 26m, the spraying width is 34m, and the #11-#19NELSON sprinkler can achieve excellent atomization effect and spray

uniformity, which is suitable for irrigating delicate crops without damaging the soil and crops.
